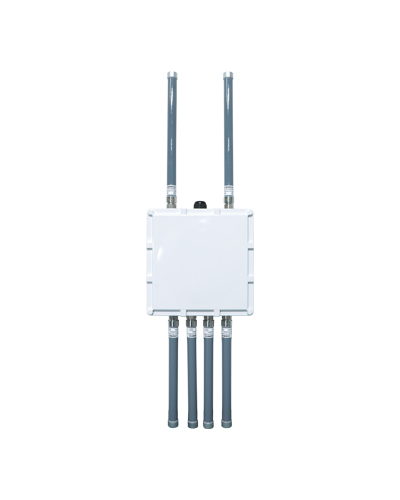

SLK-R640-5G Industrial Outdoor 5G CPE Router
- Product description
- Parameters
- Order information
- Application
- Size
- Related download
- OEM
Introduction:
SLK-R640-5G is an Outdoor wireless 5G CPE product with high-performance 4-core CPU, high power WiFi6, and integration of cellular 5G network. Supports 1x 1000M Ethernet port, which can be configured as LAN/WAN ports, 2X2 MIMO 2.4g /5.8G WIFI6, and you can choose DC48V POE power in or DC10-55V Power in version. It also supports wide work temperature, wide voltage input and EMC test with electromagnetic compatibility.Has been widely used in the Internet of things industry chain of M2M industry, such as self-service terminals, smart grid, smart transportation, smart home, financial, mobile POS terminals, supply chain automation, industrial automation, intelligent buildings, fire control, public security, environmental protection, meteorology, digital medical treatment, telemetry, agriculture, forestry, water, coal, petrochemical and other fields.
Features:
●Qualcomm Quad-core CPU/ 1.8GHz,8Gb DDR3,4GB eMMC
●802.11ac mode: PHY rate: 866.7 Mbps (5 GHz) and 400 Mbps (2.4 GHz)
or proprietary PHY rate: 1083 Mbps (5 GHz) and 500 Mbps (2.4 GHz)
●802.11ax mode: PHY rate: 1201 Mbps (5 GHz) and 573.5 Mbps (2.4 GHz)
●Wi-Fi supported IEEE802.11ac, IEEE802.11ax
●Supported 5G SA, NSA network

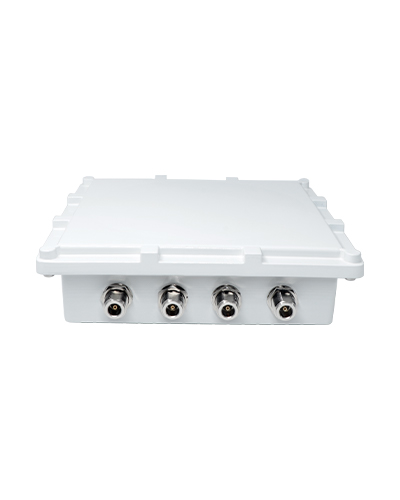

●4x5G antenna interface (N-J connector)

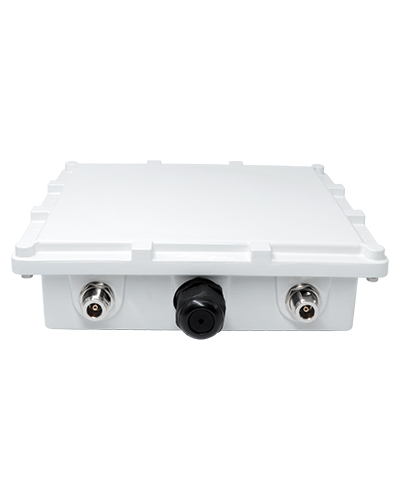

●2xWIFI antenna interface（N- connector）
●Standalone Multi-GNSS Engine(Optional)
●1 x 10/100/1000M Ethernet LAN /WAN Ports (RJ45 Connector)
●1xNANO SIM card Slot for 5G network
●DC10-55V Power In or 48V POE Power in
●Protection class IP67
Parameters
|
Hardware |
|
|
CPU |
Qualcomm Quad-core CPU/ 1.8GHZ |
|
RAM |
8Gb |
|
NOR Flash |
4Gb |
|
OS |
LINUX /OPENWRT |
|
Band Supported SLK-R640-5G-A1(AE) (Europe Asia,Australia) A1=one 5G Module A2=two 5G Module
|
5G Sub-6G SA |
N1/3/5/7/8/20/28/38/40/41/75/76/77/78 |
|
5G Sub-6G NSA |
N1/3/5/7/8/20/28/38/40/41/77/78 |
|
|
LTE-FDD |
Band 1/3/5/7/8/20/28/32 |
|
|
LTE-TDD |
Band 38/40/41/42/43/46(LAA) |
|
|
WCDMA |
Band 1/5/8 |
|
| Band Supported
SLK-R640-5G-A1(AE) (Europe Asia,Australia) A1=one 5G Module A2=two 5G Module |
5G Sub-6G SA | N2/5/12/14/25/30/41/48/66/70/71/77 |
| 5G Sub-6G NSA | N2/5/12/25/30/41/66/71/77 | |
| LTE-FDD | Band 2/4/5/12/13/29/30/66/71 | |
| LTE-TDD | Band 41/48/46(LAA) | |
| Band Supported
SLK-R640-5G-A1(GL) (Global Version) A1=one 5G Module A2=two 5G Module |
Sub-6G | N1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 |
| LTE-FDD | B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 | |
| LTE-TDD | B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 | |
| LAA | B46 | |
| WCDMA | B1/ 2/ 4/ 5/ 8/ 19 | |
|
Bandwidth |
NR SA: 2.47Gbps(DL) / 900Mbps(UL) NR ENDC: 3.47Gbps(DL) / 660Mbps(UL) LTE: 1.6Gbps(DL) / 211Mbps(UL) WCDMA: 42Mbps(DL) / 5.76Mbps(UL) Note: The actual network speed and bandwidth depends on the local carrier network and signal. |
|
|
Standalone GPS |
|
|
Multi-GNSS engine |
GPS, GLONASS, BeiDou, Galileo and QZSS |
|
LNA |
Built-in LNA for better sensitivity |
|
Supported Bands |
GPS L1 C/A: 1575.42 MHz Galileo E1: 1575.42 MHz QZSS L1: 1575.42 MHz GLONASS L1: 1602.5625 MHz BeiDou B1: 1561.098 MHz |
|
Channel |
Tracking: 48 Fast Acquisition: 2 |
|
Horizontal Position Accuracy |
Autonomous: < 1.5 m CEP |
|
Velocity Accuracy |
Without Aid: < 0.1 m/s |
|
Acceleration Accuracy |
Without Aid: < 0.1 m/s2 |
|
TTFF (without AGNSS) |
Cold Start: < 32 s Warm Start: < 25 s Hot Start: < 2 s |
|
Sensitivity |
Acquisition: -145 dBm Tracking: -162 dBm Reacquisition: -152 dBm |
|
Protocols |
NMEA 0183 |
|
WIFI supported |
|
|
Wireless |
High power WiFi performance On-board 2x2 2.4GHz 802.11b/g/n, max 25dBm per chain, and On-board 2x2 5GHz 802.11a/n/ac, max 27dBm per chain |
|
Frequency |
2.412GHz to 2.472GHz and 5.150GHz to 5.825GHz, simultaneous dual band |
|
WIFI Rate |
2x2 MU-MIMO On-board WiFi 2.4GHz radio, up to 574Mbps physical data rate, TCP data up to 400Mbps |
|
2x2 MU-MIMO On-board WiFi 5GHz radio, up to 1210Mbps physical data rate, TCP data rate up to 800Mbps |
|
|
Modulation Techniques |
802.11b: DSSS (DBPSK / DQPSK / CCK) 802.11a/g: OFDM (BPSK / QPSK / 16-QAM / 64-QAM) 802.11ac/n: OFDM (BPSK / QPSK / 16-QAM / 64-QAM / 256-QAM) 802.11ax:OFDM 1024QAM |
|
Router characteristics |
|
|
Firewall |
Network Address Translation (NAT) |
|
State full Packet Inspection (SPI) |
|
|
Media Access Control |
CSMA/CA with ACK |
| WIFI | AP,Client |
|
VPN protocol |
PPTP,L2TP ,OpenVPN Client,IPsec,Wireguard |
|
DHCP |
Build-in DHCP (Dynamic Host Configuration Protocol) |
|
Others protocol |
Supported PPP,PPOE，DDNS,ICMP,VRRP etc |
| Device Manager | SNMP V1,V2,V3 TR069 |
|
Interface |
|
|
LAN Port |
1x 10/100/1000M LAN/WAN port(RJ45 Connector) POE Ethernet,Supports 48V POE input(optional) POE Version |
|
Reset |
1x Reset |
|
Antennas |
4x N-J 5G Antennas interface (50Ω ) |
|
4x N-J WIFI Antennas interface (50Ω ) |
|
|
LED |
Power-SYS-4G-5G-Signal strength-LEDS |
|
SIM slot |
1x NANO-SIM card slot, supports e-SIM card |
| Power In | Supports DC 12-55V,DC Power Version,5.5*2.1DC Connector |
| Power Consumption | 24W(Max) |
|
Power |
|
|
Default power |
Standard POE 48V input (US,EU etc stander option) |
|
Input VDC |
42~57VDC |
|
Power Consumption |
16W (Max) |
|
Physical property |
|
|
Operating Temperature |
Storage Temperature: (-40°C to 90°C) |
|
Operating Temperature: (-40°C to 75°C) |
|
|
Relative Humidity |
95% |
|
Size |
L*S*H: 210*210*68 MM |
|
Weight |
Net weight:1.5KG |
|
Packing weight: 3KG |
|
|
Certification |
CCC,CE,FCC,RHOS |
|
Warranty |
2 years |
|
Package contains |
Seriallink CPE Router, 1.5m long RJ45 Cable, 12V/2A POE Power Adapter, Antennas User manual( Option choose PDF) |
Order information
|
Order information: |
|
|
Model |
|
|
SLK-R640-5G-A1(AE) |
SLK-R640-5G-A1(AE) 5G CPE 4x N-J Fiber Glass 5G antennas,2x N-J Fiber Glass WIFI antennas 1x 12V/2A Power adapter，1x RJ45 Cable,1.5 meters long,1x AC to POE Power adapter |
|
SLK-R640-5G-A1(NA) |
SLK-R640-5G-A1(NA) 5G CPE 4x N-J Fiber Glass 5G antennas,2x N-J Fiber Glass WIFI antennas 1x 12V/2A Power adapter，1x RJ45 Cable,1.5 meters long,1x AC to POE Power adapter |
|
SLK-R640-5G-A1(GL) |
SLK-R640-5G-A1(GL) 5G CPE 4x N-J Fiber Glass 5G antennas,2x N-J Fiber Glass WIFI antennas 1x 12V/2A Power adapter，1x RJ45 Cable,1.5 meters long,1x AC to POE Power adapter |
|
A1=one 5G module A2=two 5G modules |
|
