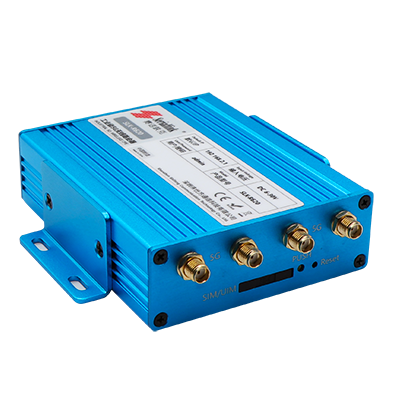

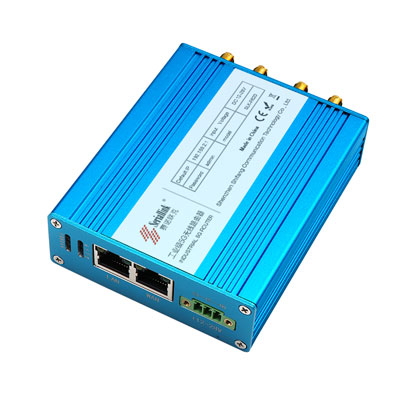

SLK-R620 Industrial 5G Wireless CPE
- Product description
- Parameters
- Order information
- Application
- Size
- Related download
- OEM
Introduction:
SLK-R620-5G is a high-speed 5G terminal based on 5G NR/LTE-FDD/LTE-TDD/HSPA+ cellular modem, integrates a dual-core 880MHz CPU，provide 2x 10/100/1000m network ports, 1 SIM card slot and insert LAN port to get 5G high-speed network. Its size is very small, in addition to the use of aluminum shell, has a very good heat dissipation performance. It also adopts wide temperature, wide voltage input and EMC test with electromagnetic compatibility.
Has been widely used in the Internet of things industry chain of M2M industry, such as self-service terminals, smart grid, smart transportation, smart home, financial, mobile POS terminals, supply chain automation, industrial automation, intelligent buildings, fire control, public security, environmental protection, meteorology, digital medical treatment, telemetry, military, space exploration, agriculture, forestry, water, coal, petrochemical and other fields.
Features:
●MTK dual-core 880MHz CPU
●2 x 10/100/1000M Ethernet LAN/WAN Ports
●5G NR/LTE-FDD/LTE-TDD/HSPA+ Network
●Super small size
●Supported DC12-30V input
Parameters
|
Hardware |
|
|
CPU |
MTK dual-core 880MHz CPU |
|
RAM |
2G bit |
|
Flash |
16MB(Bytes) |
|
OS |
LINUX latest version |
|
Cellular Interface |
||
|
Model: SLK-R620 V1.2(UNISOC UDX710, Applicable to China, Asia Pacific and other regions with the same frequency) |
||
|
Band Supported |
5G/4G/3G Version |
|
|
5G |
Sub-6G, NSA/SA |
N1/N28/N41/N78/N79 |
|
4G |
LTE-FDD |
B1/B2/B3/B5/B7/B8 |
|
4G |
LTE-TDD |
B34/B38/B39/B40/B41 |
|
3G |
WCDMA |
B1/B2/B5/B8 |
|
MIMO |
5G NR |
NR: DL 4*4 MIMO: N1/N41/N78/N79 UL 2*2 MIMO: N41/N78/N79 |
|
LTE |
DL 2*2MIMO: B1/B2/B3/B5/B7/B8/B34/B38/B39/B40/B41 UL 1*1 MIMO |
|
|
Bandwidth |
• NR SA: 1.9Gbps(DL) / 750Mbps(UL) • NR ENDC: 2Gbps(DL) / 340Mbps(UL) • LTE: 500Mbps(DL) / 150Mbps(UL) • WCDMA: 42Mbps(DL) / 11Mbps(UL) This is the theoretical value, the actual speed is subject to the local operator |
|
|
Model: SLK-R620 V1.1(Qualcomm x62 CPU, Applicable to China, Asia Pacific and other regions with the same frequency) |
||
|
Band Supported |
5G/4G/3G Version |
|
|
5G |
Sub-6G, NSA/SA |
N1/N3/N28/N41/N78/N79 |
|
4G |
LTE-FDD |
B1/B3/B5/B7/B8/B20/B28 |
|
4G |
LTE-TDD |
B34/B38/B39/B40/B41 |
|
3G |
WCDMA |
B1/B5/B8 |
|
MIMO |
5G NR |
DL 4*4 MIMO: N1/N3/N5/N7/N20/N28/N38/N40/N41/N75/N76/N77/N78 UL 2*2MIMO: N41/N77/N78 |
|
LTE |
DL 4*4 MIMO: B1/B3/B5/B7/B20/B28/B32/B38/B40/B41/B42/B43 |
|
|
Bandwidth |
• NR SA: 2.5Gbps(DL) / 900Mbps(UL) • NR NSA: 3.5Gbps(DL) / 555Mbps(UL) • LTE: 1.6Gbps(DL) / 211Mbps(UL) • WCDMA: 42Mbps(DL) / 5.76Mbps(UL) This is the theoretical value, the actual speed is subject to the local operator |
|
|
Model: SLK-R620-EAU(Applicable to Europe, Middle East, Asia Pacific and other regions. Qualcomm x62 CPU) |
||
|
Band Supported |
5G/4G/3G Version |
|
|
5G |
Sub-6G. NSA/SA |
N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78 |
|
4G |
LTE-FDD |
B1/B3/B5/B7/B8/B20/B28/B32 |
|
4G |
LTE-TDD |
B38/B40/B41/B42/B43 |
|
3G |
WCDMA |
B1/B5/B8 |
|
MIMO |
5G NR |
DL 4*4 MIMO: N1/N3/N5/N7/N20/N28/N38/N40/N41/N75/N76/N77/N78 UL 2*2MIMO: N41/N77/N78 |
|
LTE |
DL 4*4 MIMO: B1/B3/B5/B7/B20/B28/B32/B38/B40/B41/B42/B43 |
|
|
Bandwidth |
• NR SA: 2.5Gbps(DL) / 900Mbps(UL) • NR NSA: 3.5Gbps(DL) / 555Mbps(UL) • LTE: 1.6Gbps(DL) / 211Mbps(UL) • WCDMA: 42Mbps(DL) / 5.76Mbps(UL) This is the theoretical value, the actual speed is subject to the local operator |
|
|
Model: SLK-R620-NA(Available in North America, Qualcomm x62 CPU) |
||
|
Band Supported |
5G/4G/3G Version |
|
|
5G |
Sub-6G. NSA/SA |
N2/N5/N12/N14/N25/N30/N41/N48*/N66/N70/N71/N77 |
|
4G |
LTE-FDD |
B2/B4/B5/B12/B13/B29/B30/B66/B71 |
|
4G |
LTE-TDD |
B41/B48/B46 |
|
MIMO |
5G NR |
DL 4*4 MIMO: N2/N5/N12/N14/N25/N30/N41/N66/N70/N71/N77 UL 2*2MIMO: N41/N77 |
|
LTE |
DL 4*4 MIMO: B2/B4/B5/B12/B13/B25/B30/B41/B48/B66/B71 |
|
|
Bandwidth |
• NR SA: 2.5Gbps(DL) / 900Mbps(UL) • NR NSA: 3.5Gbps(DL) / 555Mbps(UL) • LTE: 1.6Gbps(DL) / 211Mbps(UL) • WCDMA: 42Mbps(DL) / 5.76Mbps(UL) This is the theoretical value, the actual speed is subject to the local operator |
|
|
Router characteristics |
|
|
Firewall |
Network Address Translation (NAT) |
|
State full Packet Inspection (SPI) |
|
|
Media Access Control |
CSMA/CA with ACK |
|
VPN protocol |
PPTP, L2TP, OpenVPN Client |
|
DHCP |
Build-in DHCP (Dynamic Host Configuration Protocol) |
|
Others protocol |
Supported PPP, PPOE, DDNS, ICMP, VRRP etc |
|

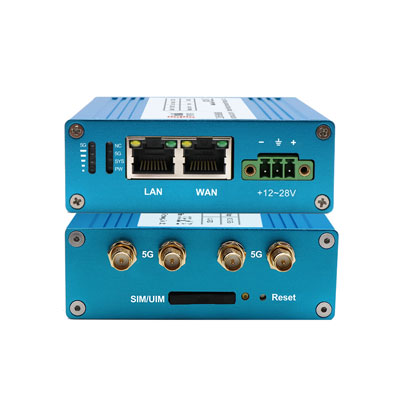

Interface |
|
|
LAN/WAN ports |
2 x 10/100/1000M ports |
|
Reset |
1x Reset |
|
Antennas |
4x 5G Antennas (50Ω SMA interface ) |
|
LED |
Power-SYS-LAN-5G LEDs |
|
SIM slot |
Supported 1.8/3.3V SIM card |
|
Power |
|
|
Default power |
DC 12V/1A power adapter (US, EU etc standard option) |
|
Input VDC |
12~30VDC |
|
Power Consumption |
10W (Max) |
|
Physical property |
|
|
Operating Temperature |
Storage Temperature: (-40°C to 85°C) |
|
Operating Temperature: (-40°C to 75°C) |
|
|
Relative Humidity |
95% |
|
Size |
L*S*H: 101mm x 82.8mm x 28.8mm |
|
Weight |
Net weight: 261g |
|
Package weight: 670g |
|
|
Certification |
CCC, CE, FCC, RHOS |
|
Warranty |
2 years |
|
Package contains |
Seriallink Router, 1.5m long RJ45 Cable, 12V/1A Power Adapter, Antennas User manual(PDF version optional) |
Order information
|
Model |
LAN |
WAN |
SIM slot |
5G ANT |
|
SLK-R620 V1.1 |
1 |
1 |
1 |
4 |
|
SLK-R620 V1.2 |
1 |
1 |
1 |
4 |
|
SLK-R620-EAU |
1 |
1 |
1 |
4 |
|
SLK-R620-NA |
1 |
1 |
1 |
4 |

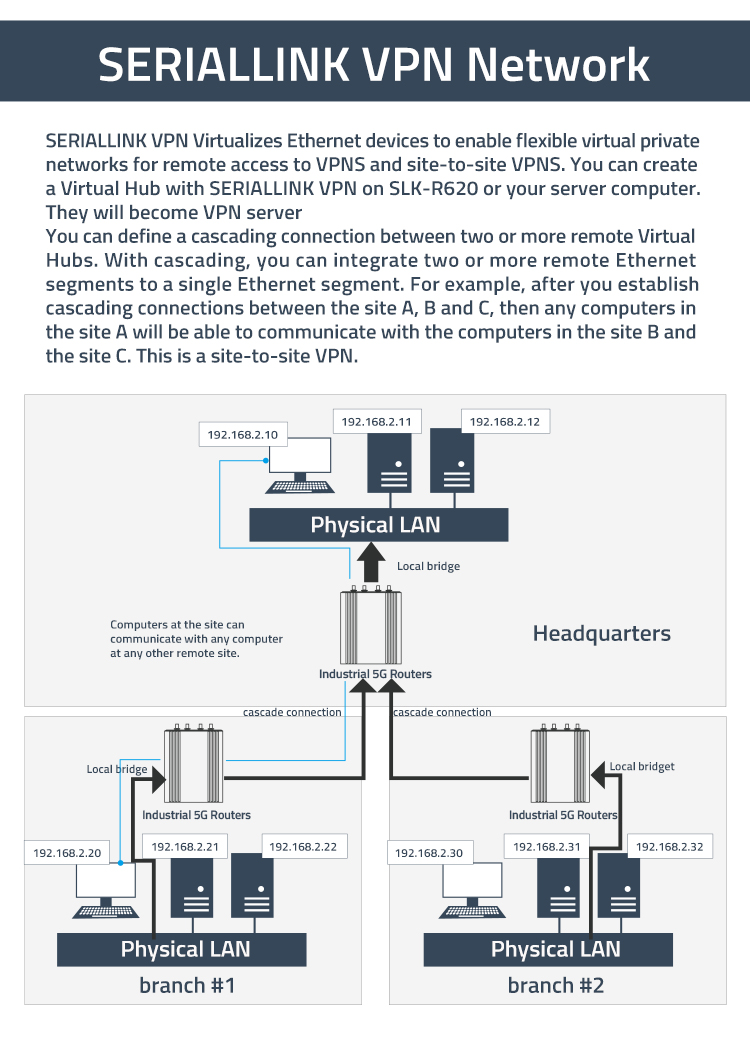

Application

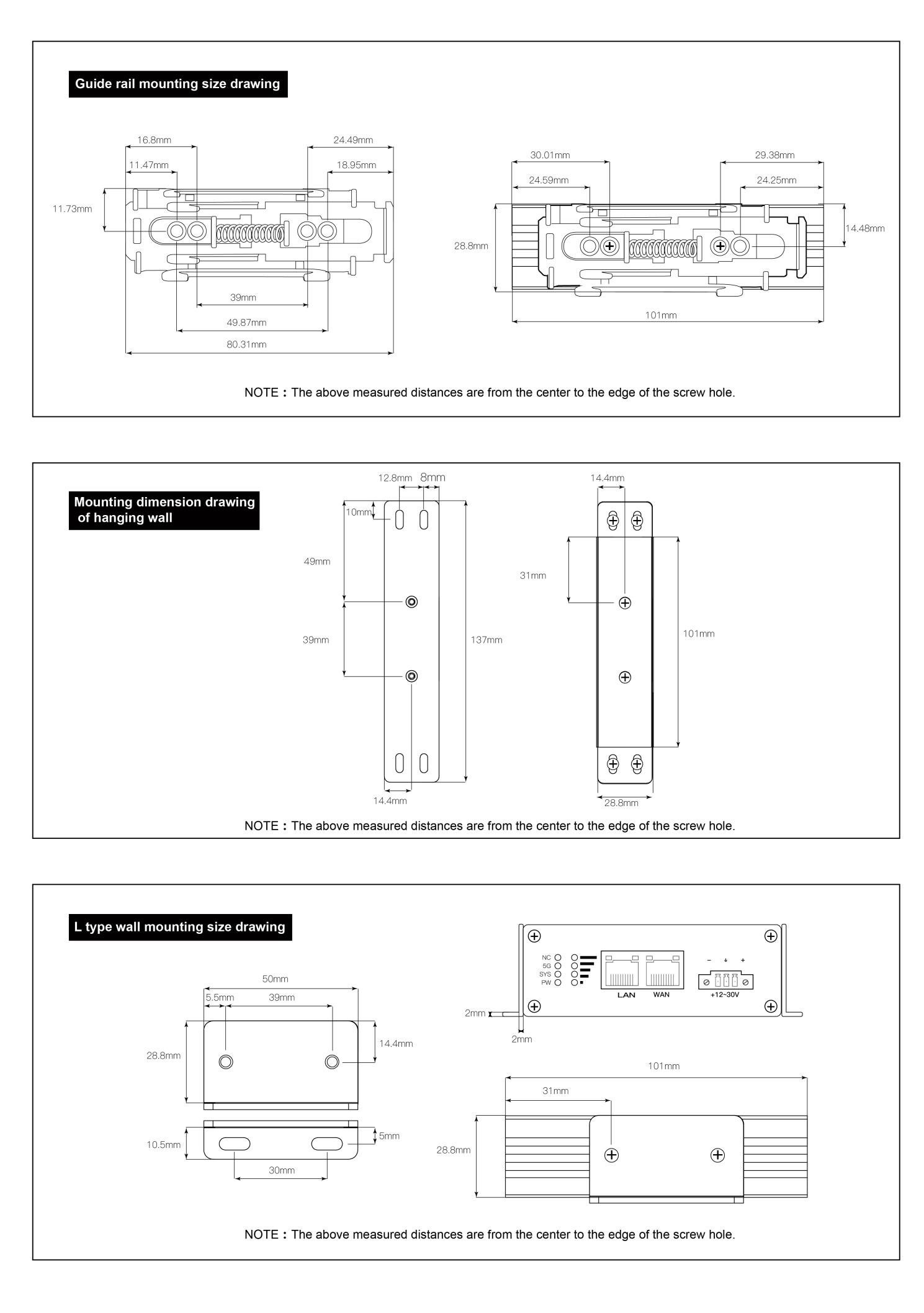

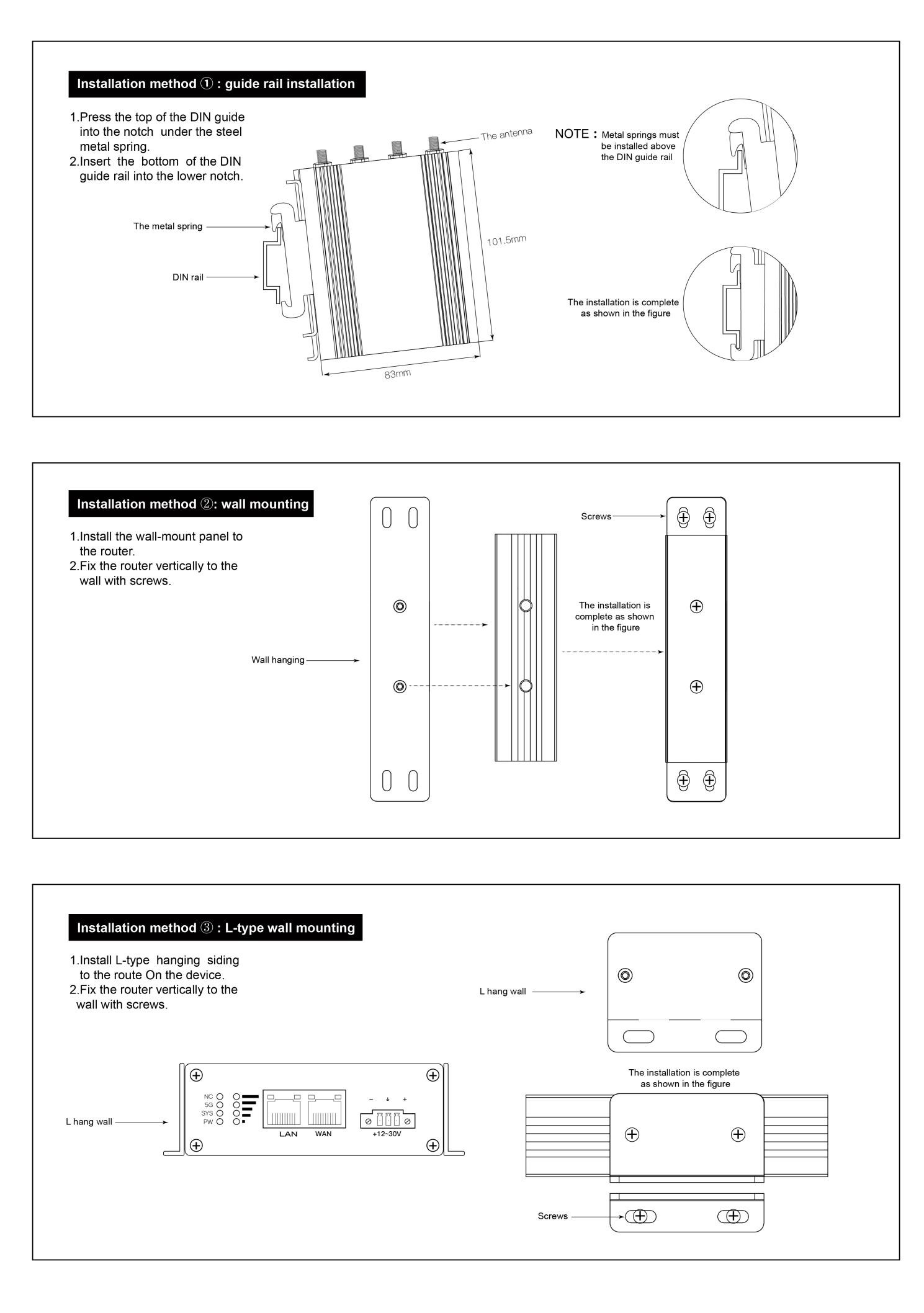

Size
