SLK-R660 is a high-speed 5G router basing on technology of 5G NR/LTE-FDD/LTE-TDD/HSPA+ cellular modem with  high-speed dual-core CPU,  It supports NA/SA networking and provides high speed 5G internet connection for various terminals.



 Equipped with physical interfaces: 2 10/100/1000M Ethernet ports, 2 RS232/485 serial ports, 4 digital input DI ports, 2 digital output DO ports, 1 self-elastic NANO SIM card slot and 1 TF card slot, supports wide voltage input 9-28V.. It is slim design with high-quality aluminum cover, Which makes sure fast heat dissipation.



This router is widely used in the Internet of things industry chain of M2M industry, such as self-service terminals, smart power grid, smart transportation, smart home supplies, financial device, mobile POS terminals, automatic supply chain, industrial automation, intelligent buildings, fire control, public security, environmental protection, meteorology, digital medical treatment,  long-distance telemetry, military, space exploration, agriculture, forestry, water, coal, petrochemical and other fields.





Features:



ü Professional High-speed dual-core communication processor

ü 2 x 10/100/1000M Ethernet LAN/WAN Ports

ü 5G NR/LTE-FDD/LTE-TDD/HSPA+ Network

ü NA/NSA networking mode, China Mobile Unicom Telecom and other 5G networks

ü 1 x NANO SIM card slot

ü 1 x TF card slot, which can support up to 128GB capacity expansion

ü 2 x RS232/485 serial port

ü 4 x Digital input DI port, 2 x digital output DO ports

ü Support DC9-28V input voltage

ü Support 35MM standard DIN rail installation



Parameters



Details

Hardware

CPU

MTK dual-core 880MHZ CPU

RAM

2G bit RAM

SPI FLASH

16M(bytes)default

Nand Flash

128MB(Bytes)Optional

TF card expansion

Maximum support 128GB (Bytes) capacity expansion (optional)

OS

LINUX latest version





Cellular Interface

Band Supported

5G/4G/3G Version



5G

Sub-6G

n1,n2,n3,n5,n7,n8,n12,n20,n25,n28,n40,n41,n66,n71,n77,n78,n79

4G

LTE-FDD

B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/

B20/B25/B26/B28/B29/B30/B32/B66/B71

4G

LTE-TDD

B34/B38/B39/B40/B41/B42/B48

3G

WCDMA

B1/B2/B3/B4/B5/B8



Theory

of Bandwidth

Sub6G:Uplink up to 300Mbps,Downlink up to 4 Gbps

 LTE CAT20:Uplink up to 150Mbps,Downlink up to 2.4Gbps

 HSPA+:Uplink up to 5.76Mbps,Downlink up to 42.0Mbps

This is the theoretical value, the actual speed is subject to the local operator

Carrier support

Support the three major operators of China Mobile, China Unicom, and China Telecom, as well as operators of corresponding frequencies abroad





Router characteristics

Firewall

Network Address Translation(NAT)

State full Packet Inspection(SPI)

Media

Access Control

CSMA/CA with ACK

VPN protocol

PPTP,L2TP ,OpenVPN Client

DHCP

Build-in DHCP (Dynamic Host Configuration Protocol)

Others protocol

Supported PPP,PPOEDDNS,ICMP,VRRP etc

Characteristic

FRP intranet penetration, and Modbus protocol etc.















Serial port

Number of

serial ports

2

Serial port

standard

Each channel supports RS232/485 standard, Connect the corresponding physical interface

Serial port rate

Baud rate supports up to 115200bps

RS232          pin definition

The first RS232 serial port: TXD1, RXD1, GND three-wire system

The first RS485 serial port: A1, B1 two-wire system

The second RS232 serial port: TXD2, RXD2, GND three-wire system

The second RS485 serial port: A2, B2 two-wire system

Note that each serial port can support 232/485, just connect the corresponding pins, not at the same time

Serial

working mode

TCP Server

TCP Client

UDP

Modbus RTU to Modbus TCP Server





IO port

Digital quantity

input

4 DI inputs

DIN1,DIN2,DIN3,DIN4,DCOM is public port

Work agreementMODBUS TCP SERVER, Default port 502

The upper computer establishes a connection through MODBUS TCP CLIENT: SLK-R660 default IP+502 port

Digital quantity

out

2 DO out

DO1,COM1,DO2,COM2,COMis public por

Relays out

Work agreementMODBUS TCP SERVER ,Default port 502

The upper computer establishes a connection through MODBUS TCP CLIENT: SLK-R660 default IP+502 port





Other interfaces

LAN/WAN interface

1 x 10/100/1000M Ethernet LAN port

1 x 10/100/1000M Ethernet LAN/WAN port, the default is WAN port, which can be changed to LAN port from the configuration page

Reset button

1 reset button, reset to factory settings

antenna

4x 5Gantenna(50Ω SMA interface)

LED

Power: Power indicator, always on when power is on

SYS: System indicator, flashing during system startup, always on after startup

5G: After registering to the 5G network, this light is always on

RDY: The network registration is normal and the light is always on when the network can be connected

4 LED lights on the right side are signal strength indicators

SIM card slot

1 x self-elastic NANO SIM card slot, support 1.8/3.3V SIM card

TF card expansion slot

Support up to 128G (Bytes) TF card





Power interface

Default power

DC 12V/1.5A Power adapter (optional for US, EU and other standards)

Input VDC

9~28VDC

Power Consumption

20W (Max)





Physical data

Operation temperature

Storage temperature: (-40°C to 85°C)

Operating temperature:  (-40°C to 75°C)

Relative humidity

95%

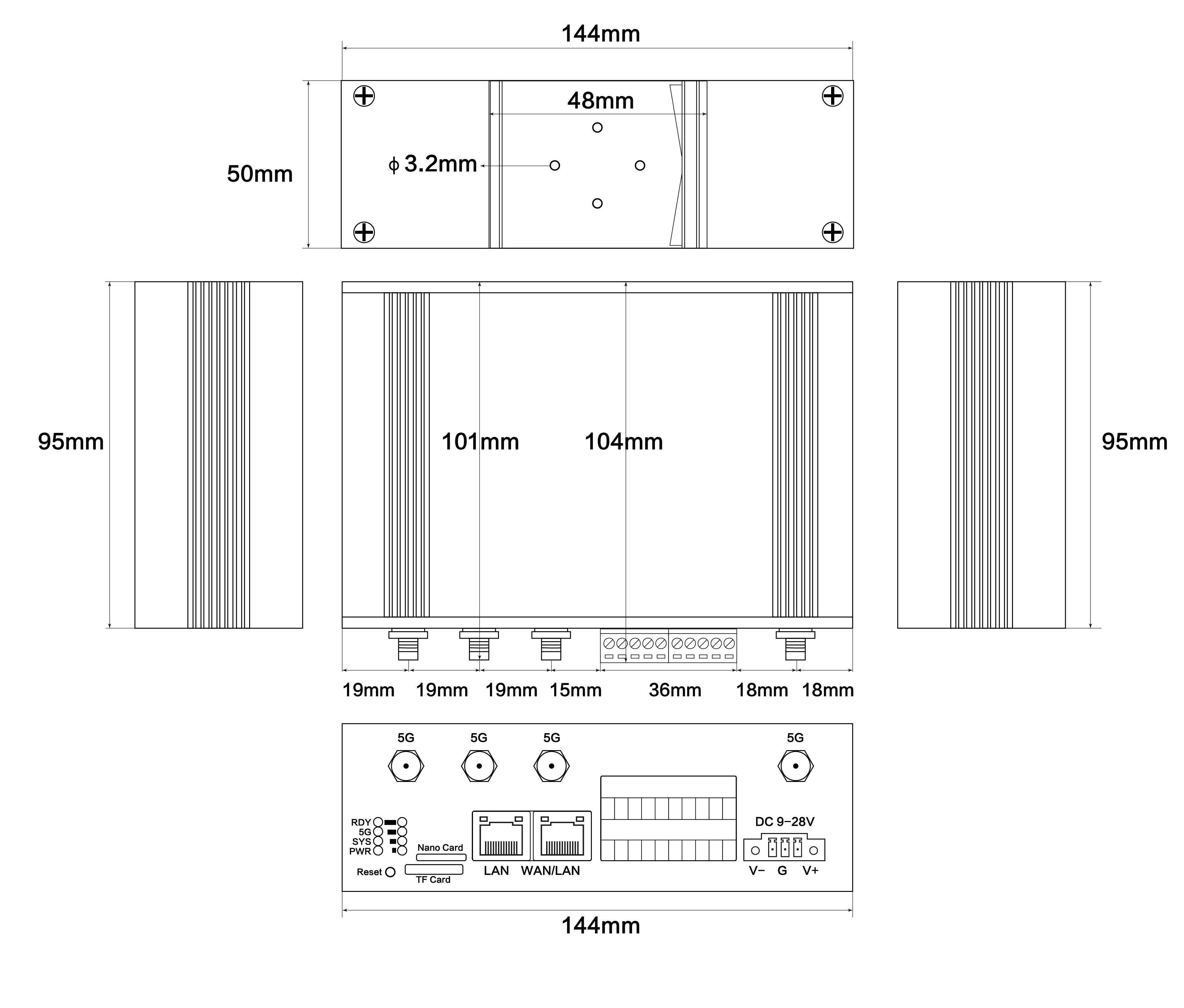

Size

L*S*H: 144mm x95mm x 50mm

Install

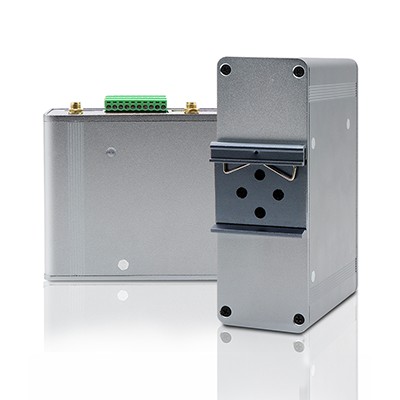

Support 35MM DIN rail installation

Weight

net weight:505g

Accessories with packaging: 861kg

Related certificates

CCC,CE,FCC,RHOS





other

Warranties

2 year

Package Contents

5G CPE terminal, 1.5m RJ45 network cable, 12V/1 .5A power adapter, 4 glue stick antennas

Instruction Manual (PDF version is optional)

Order information

Ordering Information

Model number

LAN

WAN

SIM card slot

5G antenna

SLK-R660

1

1

1

4
