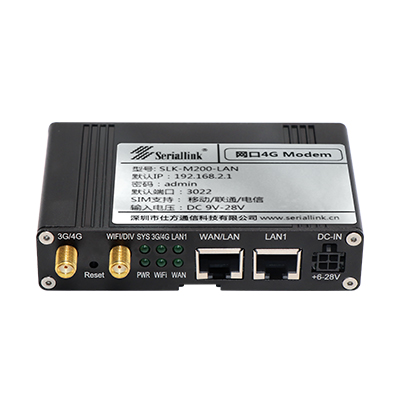

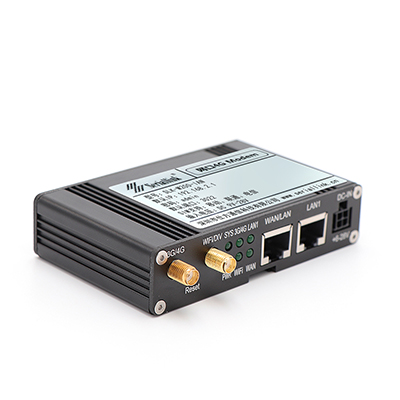

Introduction:

SLK-M200-LAN is an industrial-grade 4G Modem with a built-in 4G/3G/ wireless Modem. It supports FDD LTE B1/3/5/8 and WCDMA B1/8 networks, and provides one LAN port, one LAN/WAN multiplex network port and one 2.4G WiFi interface. Users can send alarm messages by connecting to the Internet or WiFi, and support the standard AT command interface.

It is mainly used in various scenes that need SMS alarm, such as computer room monitoring. It does not restrict your operating system and does not need to install drivers. Access the modem by IP address plus port number.

It has been widely used in M2M industries in the IoT industry chain, such as smart grid, intelligent transportation, finance, supply chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical care, agriculture, forestry, water affairs, coal mine, petrochemical and other fields.

 Features:

ü Adopt high-performance full-band cellular wireless module

ü LINUX operating system

ü Adopt metal shell design, the protection level reaches IP30, and it is specially used in industrial environment.

ü Wide voltage input supports DC9-28V

ü Rich frequency band, support mobile Unicom Telecom 4G, Unicom 3G network

ü 1 100M LAN port, 1 100M LAN/WAN network port

ü 1 2.4G WIFI interface

ü Support wall mounting or guide rail mounting.

Parameters

Detailed parameters:

Cellular network band support:

Cellular network frequency band

Network support

Mobile Unicom telecom

Three netcom uses





Support FDD-LTE B1/B3/B5/B8

WCDMA/HSDPA/HSPA+ B1/B8 are supported

WIFI performance:

WIFI support

protocol standard

Support IEEE 802.11 b/g/n wireless standard

frequency band

2.4GHz (ISM band support)

WIFI rate

150Mbps

Encryption security

64/128-bit WEP (Wired Equivalent Privacy)

WPA & WPA-PSK &WPA2 -PSK(Wi-Fi Protected Access)



Hardware/software performance:

hardware performance

Platform CPU

32-bit high-performance communication processor chip, 32bit/400MHZ

Memory/ram

8M/64M

OS

Embedded LINUX system

software performance

IP default

192.168.2.1

Default port

3022

Default working mode

TCP SERVER

Sending SMS mode

Establish TCP client to connect to TCP server port, and then send AT command.

Short message format

TEXT,PDU mode



Interface performance:

port

LAN mouth

1 10/100M port

WAN

1 10/100M WAN/LAN port

Reset

1 reset button

aerial

1 3G/4G antenna (50Ω SMA interface)

1 WiFi interface

Display LED

With Power-SYS-LAN-WiFi-3G/4G light indicator

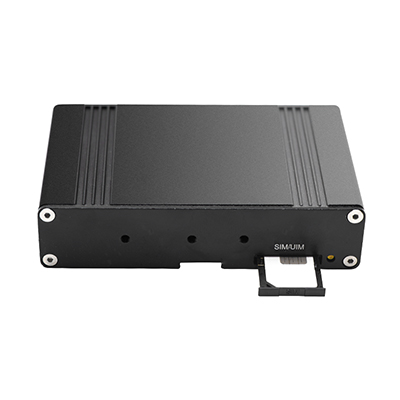

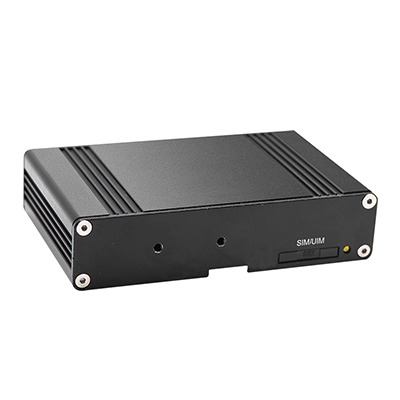

SIM card interface

Small SIM card supporting 1.8/3.3V standard

Power interface:

Power Supply

Default input voltage

DC 12V/1A

Input voltage range support

9~28VDC

Physical characteristics:

physical characteristics

Working temperature

Storage temperature: (-40 C to 75 C)

Operating temperature: (-30 C to 65 C)

relative humidity

95%

measure

Length * width * height: 98mm x58mm x 24mm

weight

Net weight: 450g

Packing accessories: 1kg

Other:

other

guarantee to keep in good condition or repair

2 years

Package

Seriallink industrial network port 4G Modem

, network cable

, power adapter,

aerial

, manual (optional electronic file),

certificate

Order information

Ordering information:

product model

LAN mouth

WAN

Sim card

WIFI/GPS antenna

4G antenna

SLK-M200-LAN(4G)

one

one

one

one

one

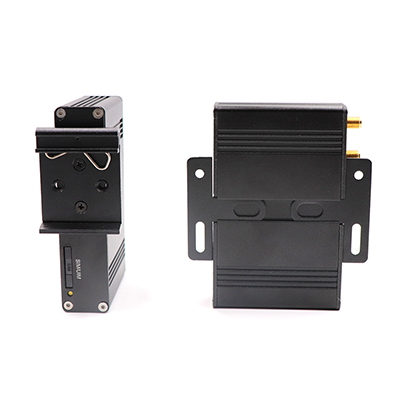

Provide wall mounting ears and rail mounting accessories.
