Introduction:

SLK-R690-5G is a multi-functional wireless 5G CPE product with high-performance 4-core CPU, high power WiFi6, and integration of cellular 5G network. Supports 5x 1000M Ethernet ports, which can be configured as LAN /WAN ports, you can choose DC48V POE power out version, 2X2 MIMO 2.4g /5.8G WIFI6, etc. It also adopts wide temperature, wide voltage input and EMC test with electromagnetic compatibility.

Has been widely used in the Internet of things industry chain of M2M industry, such as self-service terminals, smart grid, smart transportation, smart home, financial, mobile POS terminals, supply chain automation, industrial automation, intelligent buildings, fire control, public security, environmental protection, meteorology, digital medical treatment, telemetry, agriculture, forestry, water, coal, petrochemical and other fields.

Features:

Qualcomm Quad-core CPU/ 1.8GHz,8Gb DDR3,4GB eMMC

●802.11ac mode: PHY rate: 866.7 Mbps (5 GHz) and 400 Mbps (2.4 GHz)

or proprietary PHY rate: 1083 Mbps (5 GHz) and 500 Mbps (2.4 GHz)

●802.11ax mode: PHY rate: 1201 Mbps (5 GHz) and 573.5 Mbps (2.4 GHz)

●Wi-Fi supported IEEE802.11ac, IEEE802.11ax

●Supported 5G SA,NSA network

●4x5G antenna interface (FAKRA connctor)

●2xWIFI antenna interface (FAKRA connector)

●Standalone Multi-GNSS engine

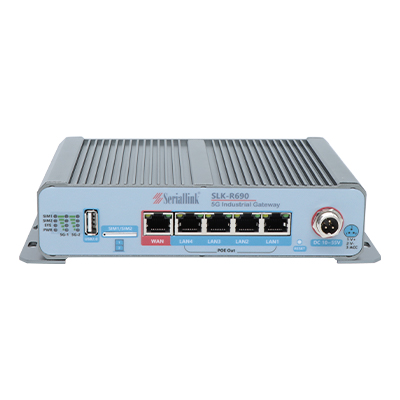

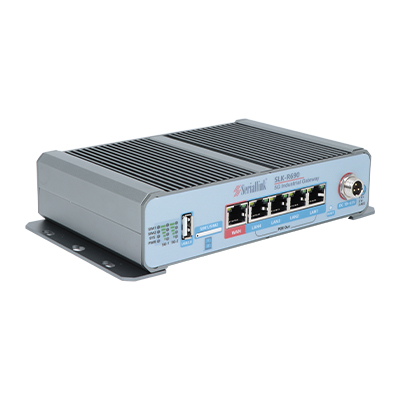

●5 x 10/100/1000M Ethernet LAN /WAN Ports (RJ45 Connector)

●1xUSB2.0 interface,1xRS232 port,1xRS485 port

●1x CAN bus port

●2xNANO SIM card for 5G network

●48V POE output(optional)

Parameters



Hardware

CPU

Qualcomm Quad-core CPU/ 1.8GHZ



RAM

8Gb

eMMC

4GB

OS

LINUX /OpenWRT



Cellular Interface

Chipset QualcommX62, 3GPP Release 16

Band Supported SLK-R690-5G-A1(AE)

(Europe Asia, Australia)

5G Sub-6G SA

N1/3/5/7/8/20/28/38/40/41/75/76/77/78

5G Sub-6G NSA

N1/3/5/7/8/20/28/38/40/41/77/78

LTE FDD

Band 1/3/5/7/8/20/28/32

LTE TDD

Band 38/40/41/42/43/46(LAA)

WCDMA

Band 1/5/8

Band Supported SLK-R690-5G-A1(NA)

(North American)

5G Sub-6G SA

N2/5/12/14/25/30/41/48/66/70/71/77

5G Sub-6G NSA

N2/5/12/25/30/41/66/71/77

LTE FDD

Band 2/4/5/12/13/29/30/66/71

LTE TDD

Band 41/48/46(LAA)

Bandwidth

NR SA: 2.47Gbps(DL) / 900Mbps(UL)

NR ENDC: 3.47Gbps(DL) / 660Mbps(UL)

LTE: 1.6Gbps(DL) / 211Mbps(UL)

WCDMA: 42Mbps(DL) / 5.76Mbps(UL

Note: The actual network speed and bandwidth depends on the local carrier network and signal.



Standalone GPS

Multi-GNSS engine

GPS, GLONASS, BeiDou, Galileo and QZSS

LNA

Built-in LNA for better sensitivity



Supported Bands

GPS L1 C/A: 1575.42 MHz

Galileo E1: 1575.42 MHz

QZSS L1: 1575.42 MHz

GLONASS L1: 1602.5625 MHz

BeiDou B1: 1561.098 MHz

Channel

Tracking: 48

Fast Acquisition: 2

Horizontal Position Accuracy

Autonomous: < 1.5 m CEP

Velocity Accuracy

Without Aid: < 0.1 m/s

Acceleration Accuracy

Without Aid: < 0.1 m/s2

TTFF (without AGNSS)

Cold Start: < 32 s Warm Start: < 25 s Hot Start: < 2 s

Sensitivity

Acquisition: -145 dBm Tracking: -162 dBm Reacquisition: -152 dBm

Protocols

NMEA 0183



WIFI supported

Wireless

High power WiFi performance

On-board 2x2 2.4GHz 802.11b/g/n, max 21dBm per chain @-35dB DEVM

On-board 2x2 5GHz 802.11a/n/ac/ax/max 20dBm per chain @-40dB DEVM

Frequency

2.412GHz to 2.472GHz and 5.150GHz to 5.825GHz, simultaneous dual band

WIFI Rate

2x2 MU-MIMO On-board WiFi 2.4GHz radio, up to

574Mbps physical data rate, TCP data up to 400Mbps

2x2 MU-MIMO On-board WiFi 5GHz radio, up to

1201Mbps physical data rate, TCP data rate up to 800Mbps

Modulation Techniques

802.11b: DSSS (DBPSK / DQPSK / CCK)

802.11a/g: OFDM (BPSK / QPSK / 16-QAM / 64-QAM)

802.11ac/n: OFDM (BPSK / QPSK / 16-QAM / 64-QAM / 256-QAM)

802.11axOFDM 1024QAM





Router characteristics

Firewall

Network Address Translation (NAT)

State full Packet Inspection (SPI)

Media

Access Control

CSMA/CA with ACK

WiFi

AP, Client

VPN protocol

PPTP,L2TP ,OpenVPN Client, IPsecWireguard

DHCP

Build-in DHCP (Dynamic Host Configuration Protocol)

Others protocol

Supported PPP,PPOE,DDNS,ICMP,VRRP etc

Device Manager SNMP V1,V2,V3 TR069





Interface

LAN/WAN Ports

5x 10/100/1000M LAN/WAN ports(RJ45 Connector)

Serial Ports

1x RS232 port (RJ45 connector)

1xRS485 port

1xCan bus port(Optional)

USB Port

1x USB2.0 interface

Reset

1x Reset

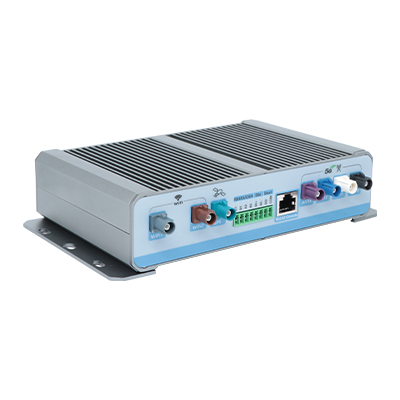

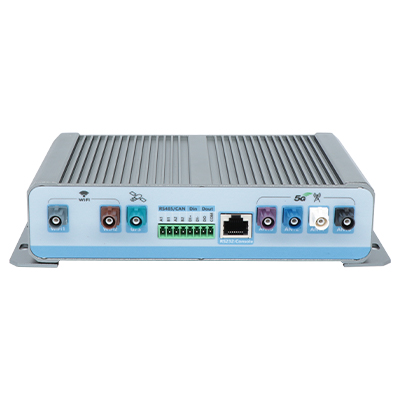

Antennas

2x FAKRA WIFI Antennas interface (50Ω)

4x FAKRA 5G Antennas interface (50Ω)

1x FAKRA GPS Antennas interface

LED

Power-SYS-4G-5G-Signal strength - LEDs

SIM Card Slot

Dual-SIM card slot ,supported e-SIM card

POE Ethernet

Supported 48V POE output(optional)



Power interface

Default power

DC 12V/2A power adapter (US,EU etc stander option)

Power connector

GX12 3PINDC+DC-ACC power control

Input VDC

10~55VDC

Power Consumption

24W (Max)



Physical property

Operating Temperature

Storage Temperature: (-45°C to 95°C)

Operating Temperature:  (-40°C to 85°C)

Relative Humidity

95%

Size

L*S*H: 175*108*45 MM

Weight

Net weight:1.5KG

Packing weight: 2KG

Certification

CCC,CE,FCC,RHOS



Others

Warranty

2 years

Order information



Model

SLK-R690-5G-A1(AE)

SLK-R690-5G-A1(AE) 5G CPE

4x FAKRA 5G antennas,2xWIFI FAKRA antennas

1x 12V/2A Power adapter1x RJ45 Cable,1.5 meters long

SLK-R690-5G-A1(NA)

SLK-R690-5G-A1(NA) 5G CPE

4x FAKRA 5G antennas,2xWIFI FAKRA antennas

1x 12V/2A Power adapter1x RJ45 Cable,1.5 meters longe

CAN bus,GPS,POE as a function optional
