Introduction:
SLK-E940 is an industrial-grade waterproof outdoor wireless router based on GPRS/CDMA/WCDMA/EVDO/LTE cellular mobile network to provide users with high-speed wireless Internet access and wireless data transmission functions. This product adopts industry-grade 32-bit dedicated communication processor, industry-grade wireless module, LINUX embedded real-time operating system, supports 1 SIM card interface, 1 POE LAN interface, and 1 waterproof mushroom head 4G antenna interface, which can provide Internet access or data transmission functions for LAN port equipment at the same time. At the same time support wide voltage input, and electromagnetic compatibility EMC test, stable and reliable. It has been widely used in the M2M industry in the industrial chain of the Internet of things, such as smart power grid, intelligent transportation, finance, supply chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical treatment, remote sensing survey, agriculture, forestry, water, coal, petrochemical and other fields.
Features:
●Adopt high performance full band cellular wireless module
●High-performance dedicated routing chip
●Adopt cast aluminum shell design, waterproof grade up to IP65, used for outdoor environment
●Wide voltage input supports DC9-50v, wide temperature design supports -40~70 ° C, low temperature environment automatic heating.
●Use watchdog design to ensure 24 hours online
●Rich frequency band, support many countries of the world cellular network system
●Support POE power supply and waterproof interface
●Embrace hoop installation
Parameters
|
Cellular network band supports |
||
|
Cellular Bands |
Variant For EMEA/Korea/Thailand |
•LTE-TDD: B38/B40/B41 •LTE-FDD: B1/B3/B5/B7/B8/B20 •UMTS/HSPA+: B1/B5/B8 •GSM/GPRS/EDGE: B3/B8 |
|
Variant for Australia/New Zealand/South America |
•LTE-TDD: B40/B66 •LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 •UMTS/HSPA+: B1/B2/B5/B8 •GSM/GPRS/EDGE: 850/900/1800/1900MHz |
|
|
Variant for China/ European Union |
•LTE-TDD B38/B39/B40/B41 •LTE-FDDB1/B3/B8 •TD-SCDMA B34/B39 •UMTS/HSDPA/HSPA+ B1/B8 •CDMA 1X/EVDO BC0 •GSM/GPRS/EDGE900/1800 MHz |
|
|
Variant for North America |
•LTE-FDD: B2/B4/B12 •UMTS/HSPA+: B2/B5 Or •LTE-FDD: B2/B4/B5/B13 |
|
|
Specifications for Data transfer |
•LTE CAT4 -Uplink up to 50Mbps -Downlink up to 150Mbps •HSPA+ -Uplink up to 5.76Mbps -Downlink up to 42 Mbps •UMTS -Uplink/Downlink up to 384Kbps •EDGE -Uplink/Downlink up to 236.8Kbps •GPRS -Uplink/Downlink up to 85.6Kbps |
|
|
Features of the Router |
|
|
Firewall |
Network Address Translation (NAT) |
|
State full Packet Inspection (SPI) |
|
|
Media Access Control |
CSMA/CA with ACK |
|
VPN Protocol |
Supported PPTP, L2TP Client |
|
DHCP services |
Build-in DHCP (Dynamic Host Configuration Protocol) |
|
Others |
Supported PPP, PPOE, DDNS, ICMP, VRRP etc |
|
Hardware Performance |
|
|
CPU |
32bit/650MHZ |
|
Flash/RAM |
8M/64M |
|
OS |
Latest LINUX |
|
Interfaces |
|
|
LAN Port |
1 x 10/100M Ethernet, POE Interface, supported 6-28VDC |
|
Reset |
1 x Reset |
|
Antenna |
1 x 4G Antenna, with Waterproof function |
|
SIM card slot |
Supported 1.8/3.3V stander sim card slot |
|
Power |
|
|
POE adapter |
Supply 1 x AC110-220V to 24V/1A Power adapter |
|
Power Consumption |
Min: 260mA@12VDC |
|
MAX: 500mA@12VDC, Build-in low temperature heating system, power consumption will increase by 3-4W |
|
|
Average:320mA@12VDC |
|
|
Physical Characteristics |
|
|
Operating Temperature |
Storage temperature: (-45°C to 70°C) |
|
Working temperature: (-40°C to 70°C), Built-in low temperature heating system |
|
|
Size |
L*S*H: 150mm x 110mm x 64mm (outside dimension) L*S*H: 120mm x 90mm x 50mm (inside dimension) |
|
Weight |
Net weight: 540g |
|
With Packing Weight: 1kg |
|
|
Warranty |
2 years |
|
Package contains |
SERIALLINK Router,1M Long Cable, POE Power adapter, Antenna, Clamp installation steel belt, instruction (optional electronic file), certificate of quality |
Order information
|
Model |
LAN(POE) |
SIM Slot |
4G Antenna |
|
SLK-E940-EU(European version) |
1 |
1 |
1 |
|
SLK-E940-AU(Australian version) |
1 |
1 |
1 |
|
SLK-E940-USA(North American version) |
1 |
1 |
1 |
|
SLK-E940-AS(Asian version) |
1 |
1 |
1 |
Application

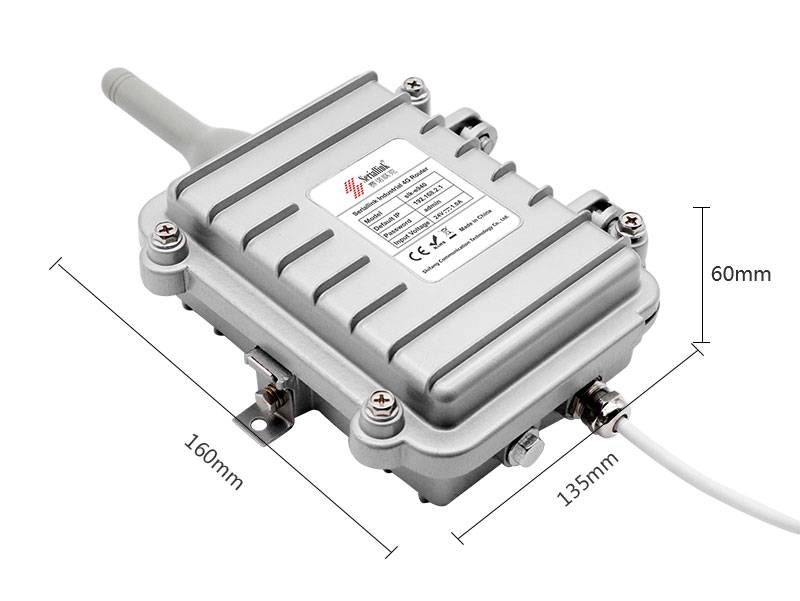

Size
Related download
- Seriallink SLK-E940 Latest firmware version [2020-08-28] | Download
